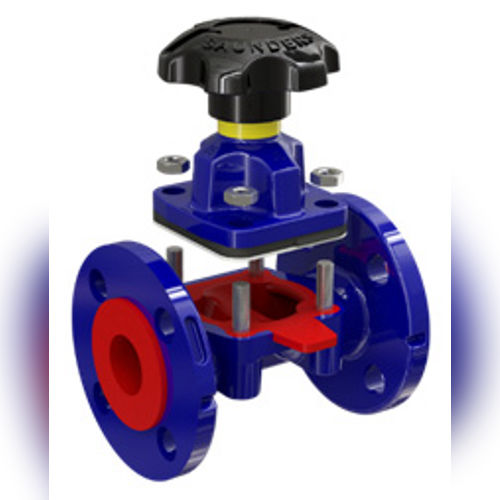

SAUNDERS DIAPHRAGM VALVE

Name: SAUNDERS DIAPHRAGM VALVE
Brand: WELD ARC ENGINEERS
Price: 1000 INR
Availability: InStock

1000 INR/Number

Get a Price/Quote

Product Details:

Application industrial
Pressure High Pressure PSI
Type Diaphragm Valves
Usage Industrial
Material Forged
Size Different Available
Product Type SAUNDERS DIAPHRAGM VALVE
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SAUNDERS DIAPHRAGM VALVE Price And Quantity

Price 1000 INR/Number
Minimum Order Quantity 1 Number

SAUNDERS DIAPHRAGM VALVE Product Specifications

Type Diaphragm Valves
Product Type SAUNDERS DIAPHRAGM VALVE
Size Different Available
Usage Industrial
Length Custom Millimeter (mm)
Width Custom Millimeter (mm)
Pressure High Pressure PSI
Application industrial
Color Blue
Material Forged

SAUNDERS DIAPHRAGM VALVE Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Day
Delivery Time 5 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard
Main Export Market(s) Australia, Central America, South America, Western Europe, Africa, North America, Eastern Europe, Asia, Middle East
Main Domestic Market All India, Nagaland, Dadra and Nagar Haveli, Jharkhand, Andaman and Nicobar Islands, Meghalaya, Goa, Tripura, South India, Rajasthan, Arunachal Pradesh, Jammu and Kashmir, Haryana, Odisha, Daman and Diu, East India, Himachal Pradesh, Assam, Madhya Pradesh, Mizoram, West Bengal, Uttar Pradesh, Lakshadweep, Manipur, Punjab, West India, Sikkim, North India, Maharashtra, Andhra Pradesh, Pondicherry, Central India, Uttarakhand, Kerala, Telangana, Tamil Nadu, Chandigarh, Gujarat, Delhi, Bihar, Chhattisgarh, Karnataka

Product Description

SAUNDERS DIAPHRAGM VALVE are widely used in industries in varius applications and are giving promising results.

Saunders Diaphragm Valve are coming in two type that is Weir type and KB straight Through type.

Operations are manaul as well as Pneuamtic.

Saunders Diaphragm Valve are serving below industries

Chemical
Pharma
Paper
Textile
Sugar

Forged Durability Meets Industrial Demands

SAUNDERS diaphragm valves are crafted from forged materials, offering exceptional resistance to mechanical stress and corrosion. This robust construction makes them highly suitable for challenging industrial settings, where long-term reliability is crucial. Customers benefit from valves that consistently perform under high pressure without frequent maintenance requirements.

Versatile Sizing for Custom Fit

Our range includes diaphragm valves in different available sizes, providing flexibility for various pipeline configurations. Whether retrofitting an existing system or designing a new one, these valves can be seamlessly integrated to meet specific application demands, ensuring efficient performance and minimal downtime.

FAQ's of SAUNDERS DIAPHRAGM VALVE:

Q: How can SAUNDERS diaphragm valves be installed in industrial systems?

A: SAUNDERS diaphragm valves can be easily installed into existing or new pipeline systems using standard connections. Their versatile sizing options ensure compatibility with different pipe diameters commonly found in industrial setups.

Q: What materials are used in SAUNDERS diaphragm valves, and how do they benefit industrial usage?

A: These valves are manufactured using forged high-quality materials that provide superior strength, corrosion resistance, and longevity, making them ideal for continuous high pressure operations in industrial environments.

Q: Where are SAUNDERS diaphragm valves most effectively used?

A: They are most effective in industries such as chemical processing, water treatment, pharmaceuticals, and any applications requiring precise fluid control under high pressure conditions.

Q: What is the process for selecting the right diaphragm valve size?

A: Selection involves evaluating the pipeline diameter, operational pressure, and flow requirements. SAUNDERS offers different available sizes to meet specific industrial needs, ensuring optimal fit and function.

Q: When should an industrial facility consider using forged diaphragm valves?

A: Forged diaphragm valves should be considered when a facility demands robust anti-corrosive components for high pressure applications, particularly where durability and minimal maintenance are priorities.

Q: What are the benefits of sourcing diaphragm valves from SAUNDERS in India?

A: Customers in India benefit from reliable product availability, expert support, and competitive pricing by partnering with SAUNDERS as a distributor, manufacturer, and supplier of premium diaphragm valves.

Saunders Diaphragm Valves Specification

Connection
Flanged / Screwed / Socket Weld / Spigot

Color
Black Body / Red Handwheel / Blue Lining

Application
Chemical Processing, Water Treatment, Pharmaceutical, Mining

Size
DN15-DN200

Pressure
Up to 16 bar (varies with size and material)

Voltage
Not Applicable (Manual Type), 24V/110V/230V (Actuator Models)

Type
Diaphragm Valve

Material
Cast Iron / Ductile Iron / Stainless Steel / Polypropylene (PP)

Temperature
Up to 120C (varies with lining and diaphragm type)

Media
Water, Chemicals, Slurries, Corrosive Fluids

Standard
BS 5156 / EN 13397 / ASTM

Power
Manual / Pneumatic Actuated

Port Size
15 mm to 200 mm

Model
Saunders Diaphragm Valves

Characteristics
Corrosion Resistant, Leakproof, Easy Maintenance

End Connection
Flanged Ends as per ASA/BSDIN, Screwed BSP/NPT

Body Coating
Epoxy Powder Coated

Design Type
Weir Type, Straight Through Type

Diaphragm Material
EPDM, PTFE, Butyl, Viton

Operation
Handwheel, Pneumatic Actuator, Electric Actuator

Maintenance
Top Entry, Easy In-line Service

Mounting Position
Any Position

Lining Material
Rubber, PTFE, EPDM, Neoprene, Butyl

Bonnet Material
Cast Iron / Stainless Steel

Saunders Diaphragm Valves Trade Information

Minimum Order Quantity
1 Number

Supply Ability
Number

Delivery Time
1 Week

Main Domestic Market
All India

About Saunders Diaphragm Valves

Versatile Design & Compatibility

Saunders Diaphragm Valves offer exceptional adaptability in industrial applications due to a diverse selection of body materials, linings, and diaphragm choicesranging from EPDM to PTFE and Viton. Their compatibility with various end connections such as flanged, screwed, and socket weld, along with flanged ends conforming to ASA, BS, EN, and DIN standards, ensures seamless integration into established pipeline systems.

Reliable and Leakproof Performance

These valves excel in delivering leakproof performance under demanding conditions, withstanding pressures up to 16 bar and handling aggressive or corrosive media. The robust body is powder-coated for enhanced corrosion resistance, while the valves unique top-entry design allows for straightforward in-line maintenance, minimizing downtime during service operations.

FAQs of Saunders Diaphragm Valves:

Q: How do I choose the right Saunders Diaphragm Valve for specific media applications?

A: Consider the chemical compatibility of both the lining (rubber, PTFE, EPDM, neoprene, butyl) and diaphragm (EPDM, PTFE, butyl, Viton) materials with your process media. This ensures optimal corrosion resistance and longevity when handling water, chemicals, slurries, or corrosive fluids.

Q: What are the operational methods available for Saunders Diaphragm Valves?

A: These valves can be operated manually using a handwheel or automated via pneumatic or electric actuators. Automated versions can be integrated with control systems and are suitable for remote or process-critical locations.

Q: When should I consider using a Weir Type vs. a Straight Through Type diaphragm valve?

A: Weir Type valves are ideal for controlling flow in general industrial, water treatment, and chemical processing applications, offering superior sealing. Straight Through Type is recommended for slurries or viscous media where minimal flow restriction is important.

Q: Where can Saunders Diaphragm Valves be installed in a process system?

A: With the flexibility of any mounting position and support for flanged, screwed, socket weld, or spigot connections, Saunders Diaphragm Valves can be installed at nearly any point in a pipeline, according to system requirements and configuration.

Q: What is the maintenance process for these valves?

A: Maintenance is streamlined with top-entry access, enabling easy in-line servicing or diaphragm replacement without removing the valve from the pipeline. This minimizes downtime and simplifies routine inspections.

Q: How do Saunders Diaphragm Valves benefit industrial operations?

A: Their corrosion-resistant, leakproof design ensures reliable operation, while easy maintenance and compatibility with international standards reduce total cost of ownership. They provide accurate shut-off and flow control in demanding environments.
